Technology
Technical Details
Frameset
Frame:
SCOR 6080 Z Alloy Frame | Lower-Link Driven Instant Center Linkage | 180 mm Rear Wheel Travel | 29 / 27.5" Mullet | Boost 148 | SRAM UDH
Fork:
RockShox ZEB Ultimate RC2 | 190mm Travel | 44mm Rake
Suspension
Front Suspension:
RockShox ZEB Ultimate RC2 | 190mm Travel | 44mm Rake

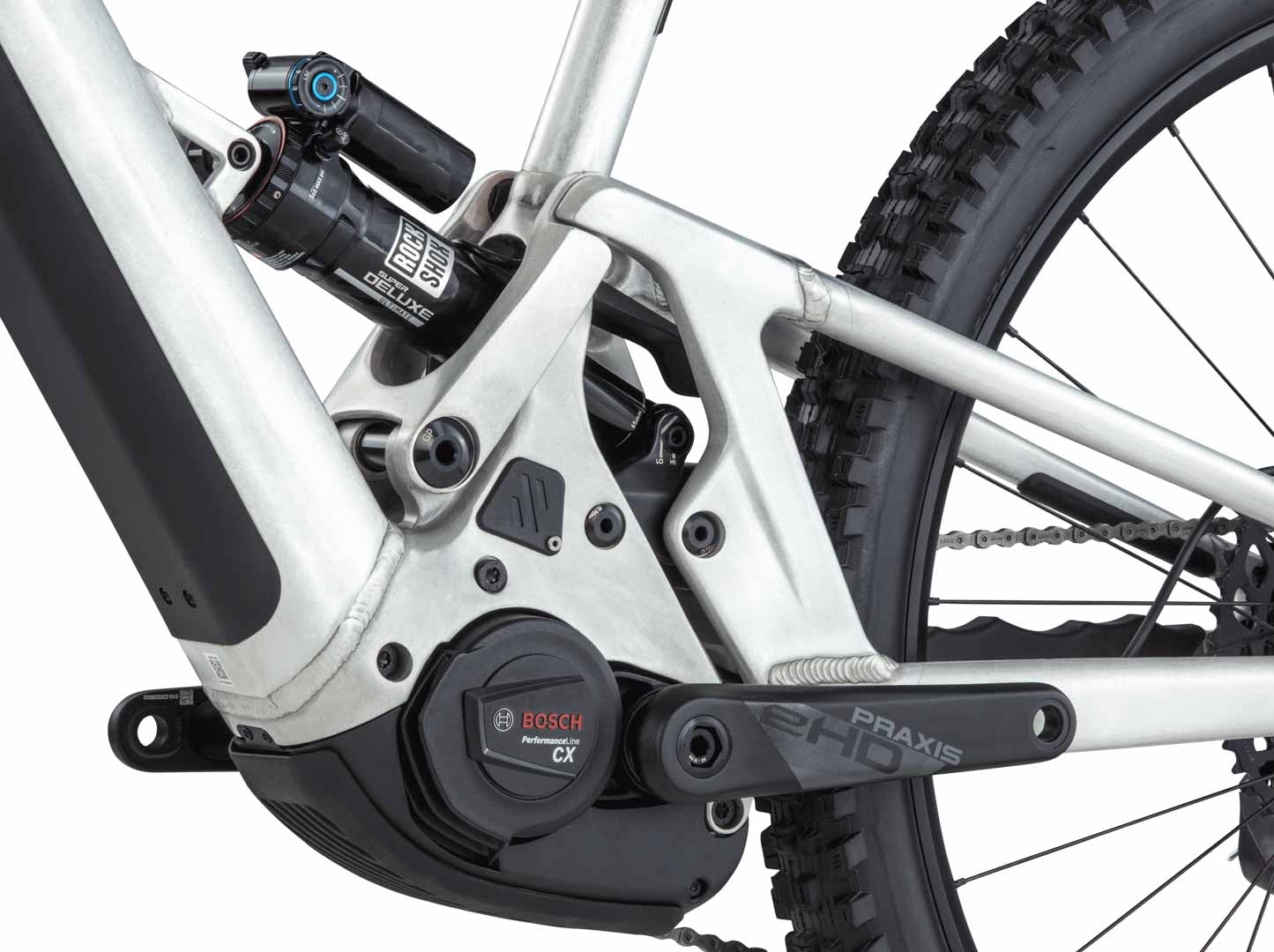

Rear Suspension:
RockShox Super Deluxe Ultimate RCT | 230 x 65mm
E-System

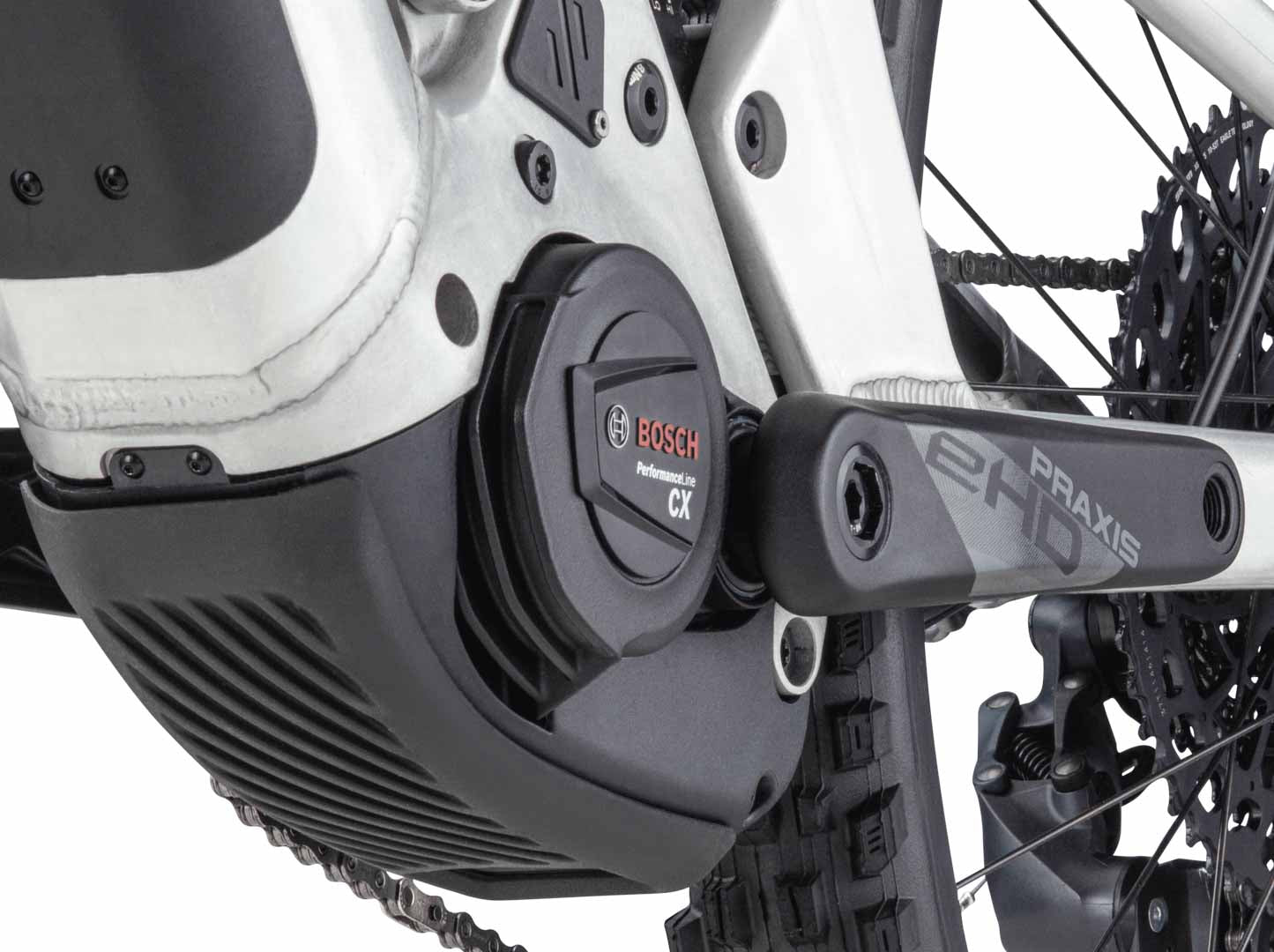

Drive Unit:
Bosch Performance CX Smart System
Battery Pack:
Bosch PowerTube | 750 Wh
Display:
Bosch System Controller BRC3100
Drive Unit Control:
Bosch Mini Remote BRC3300
Charger:
Bosch 4A Charger
Cockpit
Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle
Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep
Grips:
Burgtec Bartender Pro
Seat
Seatpost:
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm Travel | Triggy Alpha lever
Saddle:
WTB Silverado Medium Cromoly SL
Brakes
Brake Levers / Calipers:
SRAM Code RSC
Rotors:
SRAM Centerline | 6-Bolt
Rotor Size (F/R):
220 / 200mm
Wheels
Rims:
DT Swiss H 1900 SPLINE | 29 / 27.5" Mullet | 30mm Internal Width | Tubeless ready
Hubs (F/R):
DT Swiss 370 | Ratchet LN Freehub | Straightpull Spoke Interface | Boost spacing
Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Assegai 27.5 x 2.5" 3C MaxxTerra DD TR (R)
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Additional Information
Tire Clearance:
Width: 64mm | Diameter: 750mm
Weight without Pedals:
ASTM Classification:
Level 5
System Weight Limit:
130kg
Size | S | M | L | XL |
---|---|---|---|---|
SCOR Size | S-435 | M-459 | L-485 | XL-515 |
Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
Reach | 435 | 459 | 485 | 515 |
Stack | 622 | 625 | 635 | 650 |
BB Drop | 16 | 16 | 16 | 16 |
Chainstay | 435 | 435 | 435 | 435 |
Fork Length | 606 | 606 | 606 | 606 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center | 798 | 821 | 848 | 876 |
Head Tube | 93 | 96 | 107 | 124 |
Head Tube Angle | 63 | 63 | 63 | 63 |
Seat Angle | 76 | 76 | 76 | 76 |
Seat Tube | 400 | 425 | 440 | 440 |
Standover Height | 733 | 733 | 733 | 733 |
Top Tube | 563 | 592 | 623 | 657 |
Wheelbase | 1224 | 1247 | 1274 | 1302 |
